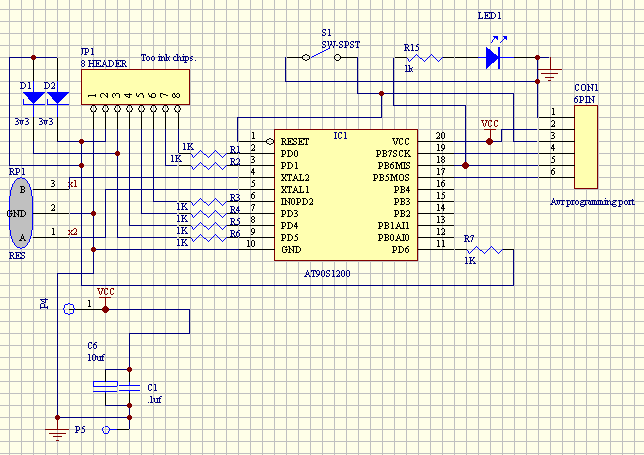

Epson 2100p/2200p ink chip spoofing cicuit.
USE AT OWN RISK!!!!!!

2100p CIS

Intellidge ink chip hack



I only had 5 volt AVRs handy, if I had had a 3V version I would have added a 3V regulator and used it.
R3 and R4 are shorted out after the circuit has been tested. They just provide a little protection while the connections are tested. With the resistors in circuit the AVR still goes through the motions but can't jam the data lines.

InkChips

AVR

JP1

data0

Portd-6

Pin 2

data1

Portd-5

Pin 3

Sync

Portd-4

Pin 4

Power(sense)

Portd-3

Pin 5

Clock

Portd-2

Pin 6

AVR2313 binary
